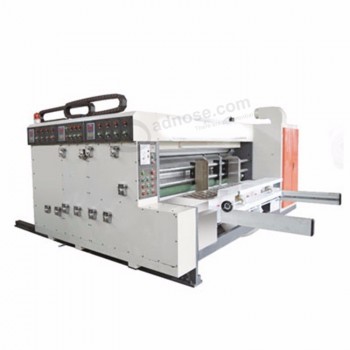

carton box printing slotting die cutting machine

0 顾客评论 0 次浏览
价格:
$6.00 - 10.00 / Set
最小起订量:
1 Set
联系供应商
请求一个自定义的订单,并为您提供一些东西!
你可能会喜欢 查看更多>


quick details
applicable Industries:
manufacturing Plant, carton box printing
condition:
New
type:
carton box printing slotting die cutting machine
computerized:
Yes
place of Origin:
shandong, china
brand Name:
canatech
warranty:
1 year
after-sales service Provided:
free spare parts, video technical support, No after-sales service
product name:
printin slotted DIE cutting machine
wall plate Inner width:
2800mm
Max. paper size:
1200x2650mm(Continuous) 1600X2650MM(Intermittent)
Min. paper size:
360x650mm
Max. printing size:
1200x2500mm
Max. grooving depth:
300mm(Can increase knife)
printing roller lateral transfer:
left and right each 10mm
equipment shell Spraying:
cold Plate(2mm)
whole machine (including ground rail):
about20t
suitable for cardboard thickness:
1.5~11mm
supply ability
supply Ability:
50 Set/Sets per   year
packaging & delivery
packaging details
carton
port
qingdao
lead time                        :
quantity(Sets)1 - 1>1
Est. Time(days)40To be negotiated

online customization

product description

printin slotted DIE cutting machine

this machine uses the standard CAD module design, each unit mobile unit and the gear transmission printing slot and die-cutting, the transmission gear (uses the high quality alloy steel 20GrMnTi, the carburizing quenching, the fine grinding processing) and the shaft adopts the expansion sleeve type free bond connection mechanism, the virtual position magnifies, avoids the center wear, causes the printing press to maintain the long life overprinter precision ; The leading edge feeding system adopts high quality cam mechanism control, stable performance, fast paper feed speed, bending cardboard can also be transmitted accurately, inverter control machine main motor, more safe, energy-saving power, independent plc and color touch screen for the whole machine multi-functional control, more convenient, fast, flexible, safe; automatic circulation oil supply spray lubrication system, reduce noise and increase gear working life.

fully automatic


easy to operate


save labour


increase of efficiency


product detailed

front paper feeding:1 Set
printing Units:1 Set
grooving Units:1 Set
circular Die Cutting: 1
Set

technical parameters:

1
wall plate Inner width
2800mm
2
Max. paper size
1200x2650mm(Continuous)
1600x2650mm(Intermittent)
3
Min. paper size
360x650mm
4
Max. printing size
1200x2500mm
5
Max. grooving depth
300mm(Can increase knife)
6
 Printing roller, lateral transfer
left and right each 10mm
7
manual adjustment of upper and lower  anilox  roller
0~6MM
8
manual adjustment of upper and lower  print roller
0~11mm
9
printing Roller, die-cutting roller, roller body rotation
360 degree
10
speed of economic production
150pc( design 180PC)Sheet/min
11
paper feeder roller
Φ136mm(Seamless pipe)
12
print roller diameter
Φ408mm
13
paper guide Roller diameter
Φ86mm( seamless pipe)
14
下印刷辊直径
Φ136mm(无缝管)
15
印刷辊直径
Φ190mm(无缝管)
16
网纹传墨辊直径
Φ216mm(无缝管)
17
轿壁
50mm厚度(HT200)
18岁
变速箱
渗碳淬火,硬度60,精磨,传动齿轮厚度50mm,主齿轮厚度50mm(20GrMnTi)
19
适用于纸板厚度
1.5〜11毫米
20
整机(包括地轨)
约20t
21
印刷机安装尺寸
l6000xw4400xh2400mm(应保留安装空间,以便在操作面上留出2M以上的空间)
22
电压范围
国家标准(五)
23
设备外壳喷涂
冷板(2mm)
包装及运送
我们公司

青岛坎特奇进出口公司。&Exp。有限公司。

青岛康耐特进出口有限公司位于中国最大的海港和制造中心青岛。该公司在中国拥有多家合资工厂和许多战略合作工厂。业务范围包括造纸机,瓦楞纸板加工和物料处理机等机电一体化设备,纸包装和后处理转换设备以及配套的专业售后服务。我们的销售网络覆盖全球超过15个国家和地区。

多年来,公司始终坚持“为客户创造价值”的信念,专注于项目实施的可靠性和售后的及时性。在国内外合作伙伴的支持下,公司凭借在国际完整生产线的安装和管理方面的丰富经验,深厚细致的专业优势,负责任的售后服务精神,成功完成了大规模的专业生产生产线以及东南亚,中东,东欧,南美和其他地区的造纸厂,瓦楞纸板生产厂,Kappa纸板厂,印刷厂,包装厂等的单独设备。截止到2019年,我们公司在印度设有分公司和独家代理商,在土耳其设有独家代理商,

w ^ 东西生病继续坚持“诚信合作,质量和效益,科学管理,稳步发展”的经营理念,以及“及时,专业,完美,热情,持续”的服务理念,与客户家庭,互惠互利携手国内外,共同发展,共同创造辉煌的未来。

常问问题

问:1.您可以接受小订单吗?
答:是的,我们也接受小订单。
问:2.您接受ODM或OEM吗?
答:欢迎ODM或OEM。
问:3.如何获得所需的更多信息?
答:您可以给我们发送电子邮件或给我们留言或直接与我们联系。我们将尽快给您答复。
问:4.您可以提供样品吗?
答:有些产品可以作为样品免费提供,但您需要支付快递费用。您可以联系我们以获取更多信息。
问:5.为什么选择我们?
答:1)我们是一家具有多年专业经验的大型制造商。
     2)交货快捷,服务周到。
     3)质量稳定,价格具有竞争力。
     4)严格的管理制度。
